Hi all,
I have been meaning to send an update about the project for a loooong
time... Many many changes (not all of them in current git yet). I'll try
to summarize...
I have a new design for the Zapnspark phantom power printed circuit
board. I decided to make a double sided board as I was going to
manufacture a few (double sided would be much harder with our small
mill), and then went overboard and tried to make it as small as possible
without using surface mounted components. I found some smaller form
factor capacitors, which helped shrink it.
Using those, the four capsule microphone is much smaller, and the
Octathingy benefits as well (smaller but not quite as much). There is a
control variable that lets you switch between the two PCB sizes, and the
assemblies mostly scale (but work is not finished yet - for example I
need new windshield and shock mount 3d models).
Speaking of the Octathingy. I have been working on the calibration side
a lot. Looking at many graphs made it more apparent that the initial
design, which is a straight scale up from the four capsule design, was
"clever" but not the best possible due to the resonance from the cavity
formed by the capsules (but then Rode, SPS, Core Sound and others of
course already knew about that - hmmm, but not Senheisser? :-).
So I went ahead with a newer "flower power" or "trumpets of doom" design
with individual conical capsule holders and the smallest practical
spherical core they could plug into. A measurement of a test 3D print
(all dummy capsules except for one) showed better performance at high

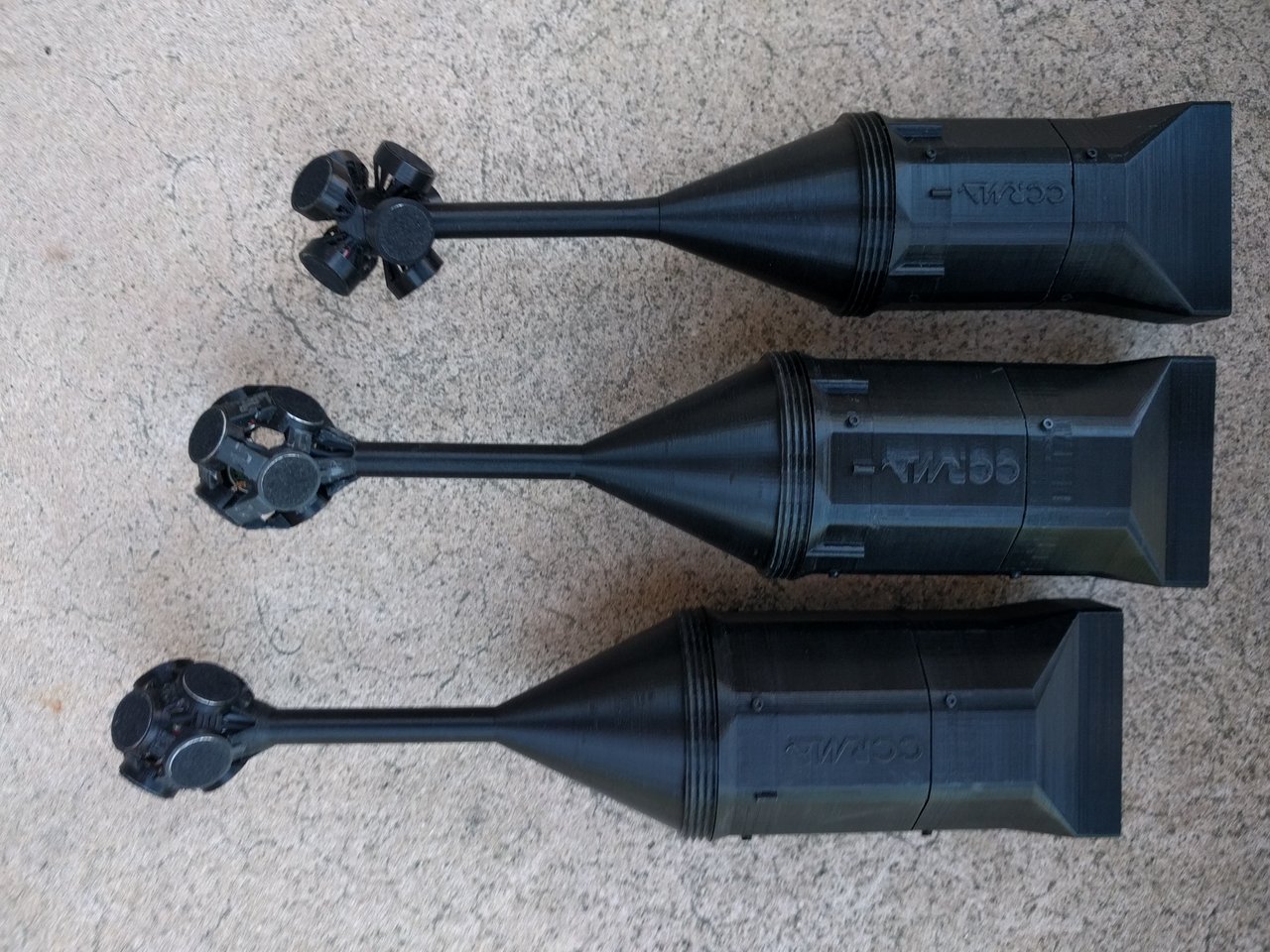

frequencies. Just yesterday I finished building the first full
prototype, now I have to measure it (see pictures, all three prototypes
and the comparison of the array between the last two).
Measuring... oh so not easy. I have to work on compensating the low end
of the measurement frequency range as that is currently (I think) the
weakest link in the calibration data. Juan Sierra here at CCRMA helped
me understand Eric's paper on the matter, and it looks like I was doing
the inverse filter and first reflection trimming in the wrong order (to
begin with!). I have to see which type of window is best (right now
using a full blackman centered on the impulse)...
The current Octathingy calibration includes equalizing the 8 individual
capsules, deriving an 8x8 matrix of A to B filters for low and mid
frequencies, and finally creating 8 individual filters for the B format
components at high frequencies, all collapsable into a single 8x8 matrix
of filters.
More about measuring...
I (well, CCRMA) bought a small robotic arm. And customized it to be a
better measurement rig. The inverse kinematics are now working correctly
and the arm is now pointing the microphone in the right directions. The
arm is a bit short (longer would have been much more expensive), but
with the current dimensions, and depending on how it orients the
microphone, I can get vertical coverage up to around +/-40 degrees of
elevation (and complete horizontal coverage of course), or +60-20 or so.
We'll see what's best, or if both can be combined.
The arm is controlled from a SuperCollider program which does the
inverse kinematics and will also will play back the sine sweeps and
record the output of the capsules. Hopefully easier and more repeatable
at the end of the road (which is still long). I really need better data...
Comments welcome...
-- Fernando
